Description
The Trina Solar Vertex N 720W Bifacial (NEG21C.20) sets a new standard in high-performance solar modules. Engineered with N-type i-TOPCon cells, this module delivers exceptional front-side conversion efficiency—up to 23.2%—while capturing additional energy from the rear side for up to 10–20% higher total output.
Its large-format 210 mm cell platform features half-cut, non-destructive cutting technology, minimizing micro-cracks and hot-spot risks. The dual-glass construction ensures top-tier protection against moisture, temperature fluctuations, and inclement weather, making it ideal for both utility-scale installations and commercial rooftops.
Key Features & Benefits

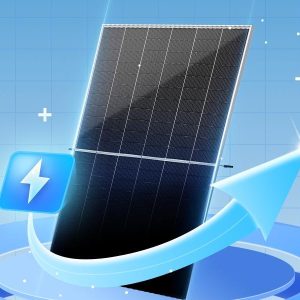

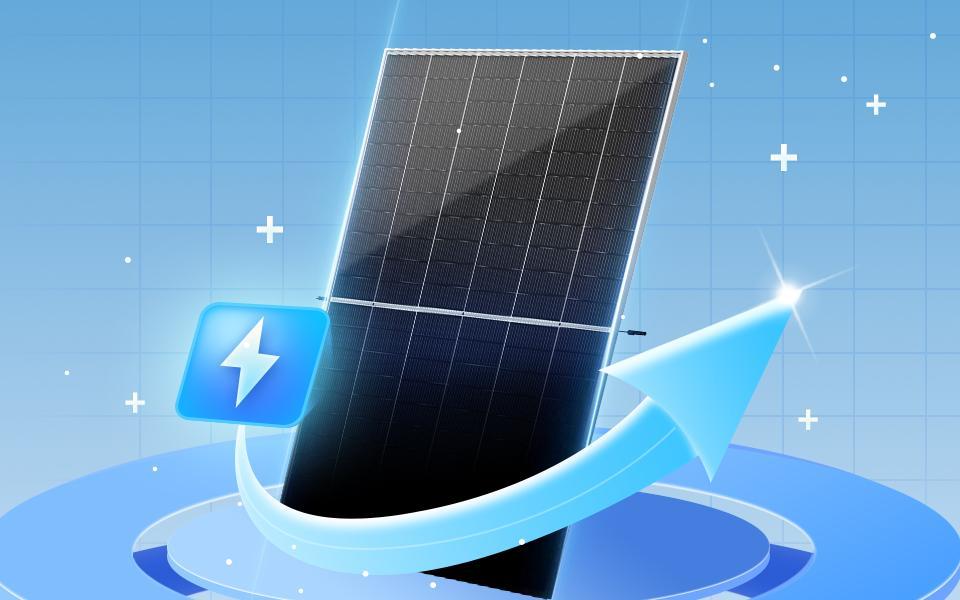

- Ultra-High Power Output: Delivers up to 720W per module.

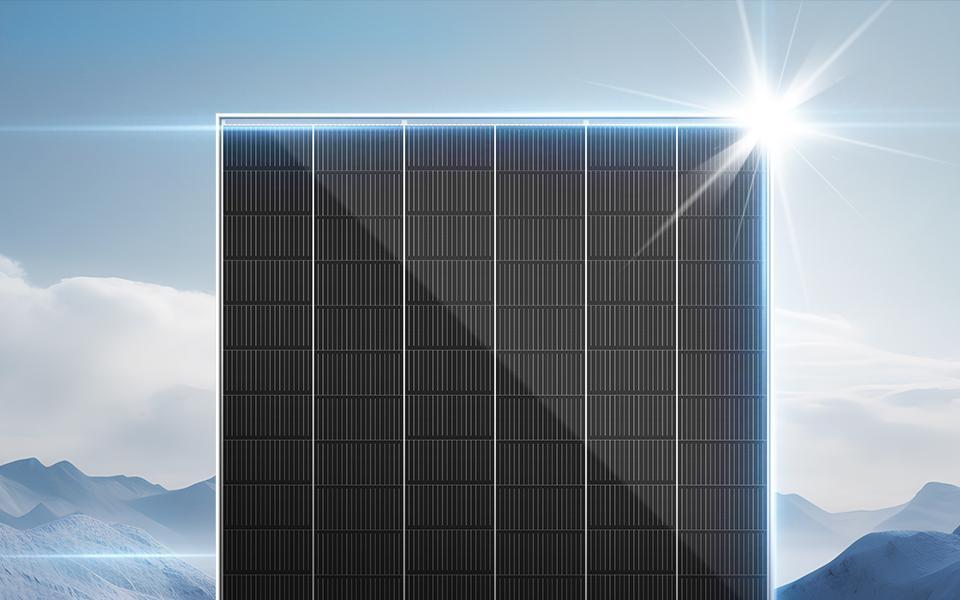

- Impressive Efficiency: Achieves up to 23.2% module efficiency.
- Advanced N-Type i-TOPCon Technology: Offers lower degradation, improved rear-side reflection, and superior cell performance.
- Bifacial Design: Up to 10–20% additional power gain from the backside, depending on albedo.
- Lower LCOE & BOS: High power and low voltage design help reduce system costs.
- Dual-Glass Construction: Enhanced durability for harsh environments, backed by a 30-year power warranty.

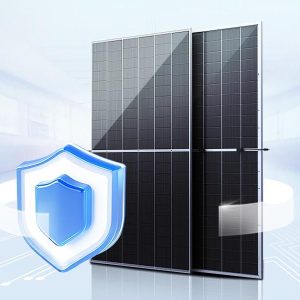

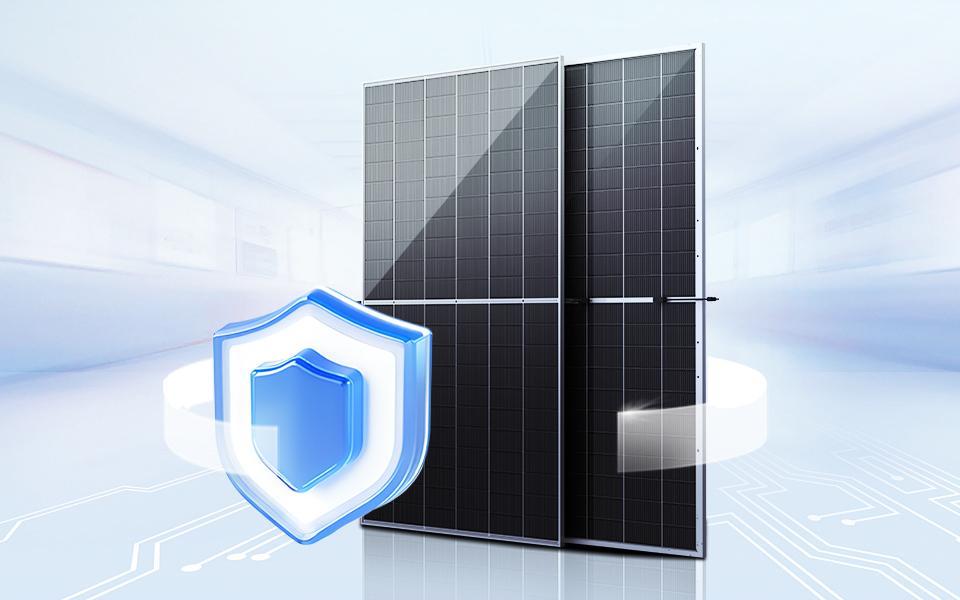

- Certified Reliability: Resistance to salt mist, ammonia, sand, PID, LID, and LeTID.
Why Choose Vertex N?
- Proven Energy Yield: Outstanding low-light performance and a lower temperature coefficient (-0.29% / °C) ensure consistent power generation.
- Lower Levelized Cost of Energy (LCOE): Each module can produce more power per string, reducing overall balance of system (BOS) costs.
- Optimized Logistics: High wattage and standardized dimensions improve container utilization, lowering shipping expenses.
Technical Specifications
General | |
---|---|
Model | US/Vertex N 720W Bifacial (NEG21C.20) |
Cell Type | N-type i-TOPCon Monocrystalline |
Number of Cells | 132 (Half-Cut) |
Power Output Range | 695–720W |
Module Efficiency | Up to 23.2% |
Power Tolerance | 0 ~ +5W |
Glass | Dual 2.0 mm Heat Strengthened Glass |
Weight | 38.3 kg (84.4 lbs) |
Dimensions (L × W × H) | 2384 mm × 1303 mm × 33 mm (93.86\” × 51.30\” × 1.30\”) |
Electrical (STC) | |
Maximum Power (Pmax) | Up to 720W |
Open-Circuit Voltage (VOC) | Up to ~49.4V |
Short-Circuit Current (ISC) | Up to ~18.49A |
Maximum System Voltage | 1500V DC (IEC/UL) |
Series Fuse Rating | 35A |
Mechanical & Operating | |
Operating Temperature | -40°F to +185°F (-40°C to +85°C) |
Connectors | MC4 EVO2 / TS4 Plus / TS4* (Region-dependent) |
Cable Cross Section | 4.0 mm² (Portrait: 350 / 280 mm cable length) |
Junction Box | IP68 Rated |
Note: STC = Standard Test Conditions (Irradiance 1000 W/m², Cell Temperature 25°C, AM1.5). Specifications subject to a ±3% tolerance.
Warranty & Certifications
- Product Workmanship Warranty: 12 years
- Power Warranty: 30 years (1% first-year degradation, 0.40% annual thereafter)
- Certifications: IEC 61215 / 61730 / 61701 / 62716, ISO 9001, ISO 14001, ISO 45001, ISO 14067
Packaging & Shipping
- Modules per Box: 33
- Modules per 40′ Container: 594
- Optimized dimensions for cost-effective transportation
Installation & Safety
Please review the included installation and safety manuals before handling or installing this product. Ensure compliance with local regulations and best practices.
Why Choose Trina Solar?
Trina Solar is a recognized leader in the global solar industry, known for its cutting-edge research and innovation, rigorous quality control, and proven track record. By selecting Trina Solar’s Vertex N modules, you invest in a product that combines world-class efficiency, superior reliability, and outstanding warranty protection.
Download the Datasheet
For additional details, please refer to the official datasheet (PDF) from Trina Solar.
Ready to reduce your LCOE and boost energy yields? Add the Vertex N 720W Bifacial module to your project today!
